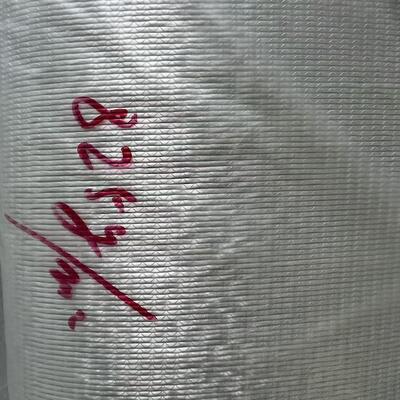

825g unit weight of Biaxial composite glass fiber mat fixed with setting powder, molded FRP products for new energy vehicle battery protection

  • 825g unit weight of Biaxial composite glass fiber mat fixed with setting powder, molded FRP products for new energy vehicle battery protection
Lugar de origen Porcelana
Certificación ISO 9000
Número de modelo ELTM825-1270
Cantidad de orden mínima 500kg
Precio negotiatable
Detalles de empaquetado El rollo se envuelve para arriba con la película plástica y después se embala en un bolso tejido. Ge
Tiempo de entrega 7 dias
Condiciones de pago T/T, LC/C
Capacidad de la fuente SEMANA DE 20MT A
Datos del producto
Material Vagueación directa de cristal de E Color Blanco
Textura Combinación de 90° y 0° Ancho 1270 mm
Resina Resinas insaturadas y demás Solicitud Caja de batería para vehículo de nueva energía.
Peso 825G
Deja un mensaje
Descripción de producto

825g unit weight of Biaxial composite glass fiber mat fixed with setting powder, molded FRP products for new energy vehicle battery protection



Introduction:

Fiberglass biaxial fabric is a cloth in which the roving is arranged in a two-way direction at 90º (transverse) and 0º (longitudinal), and then stitched with a coil structure. It can be stitched two-way layer yarn with chopped strand mat, polyester surface felt, fiberglass surface felt, carbon fiber surface felt, etc., processed into various types of  composites fabric to obtain specific performance.





Specifications:

Product NO.

Overall Weight

(g/m2)

0°Roving

(g/m2)

90°Roving

(g/m2)

Chopped Roving

(g/m2)

Polyester Felt

(g/m2)

Width

(mm)
ELT 450 450 250 200 / / 150 - 2600
ELT 600 600 336 264 / / 150 - 2600
ELT 800 800 420 380 / / 150 - 2600
ELTP 500 500 250 210 / 40 150 - 2600
ELTM 600 600 250 200 150 / 150 - 2600
ELTM 900 900 336 364 200 / 150 - 2600
ELTM 1050 1050 336 414 300 / 150 - 2600
ELTM 1200 1200 420 430 350 / 150 - 2600
ELTMP 640 640 250 200 150 40 150 - 2600





Features:

● No binder content, good wet out of resin

● Provide mechanical strength of the product i multi direction

● Fiber straight arrangemet, max. usage of fiber strength

● Interspaces between the fibers are small, effectively improve the impact resistance of products





Application:

● Compatiable with reinforeced unsaturated polyester resin, vinlylester resin, epoxy resin, phenolic resin and polyurethane resin etc.

● Forming process includes vacuum infusion molding, pultrusion, hand lay-up, RTM etc.

● The typical end-use applications are FRP boat hull, wind power blade, sports equipment, pultruded profile and auto body etc.





825g unit weight of Biaxial composite glass fiber mat fixed with setting powder, molded FRP products for new energy vehicle battery protection 0
