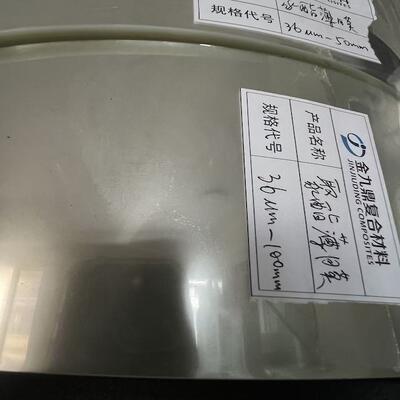

High Performance 36μm PET Polyester Film for FRP Continuous Winding Pipe Deaeration

Lugar de origen Porcelana
Certificación ISO9001
Número de modelo 36um-100mm
Cantidad de orden mínima 1200 kgs
Detalles de empaquetado paleta, 1200 kg/paleta
Tiempo de entrega 7-15 días
Condiciones de pago T/T, carta de crédito, Western Union
Datos del producto
Materia prima ANIMAL DOMÉSTICO del 100% Alargamiento en rotura 60%
muestra Disponible y gratis Material Poliéster
Solicitud Creciente Resistencia a la tracción Mpa 150
Embalaje Bolsa de plástico, paleta Color Transparente
Código Hs 392062 Resistencia a la temperatura Hasta 180 ° C
Ancho 50 mm, 70 mm o según pedido
Deja un mensaje
Descripción de producto

High Performance 36μm PET Polyester Film for FRP Continuous Winding Pipe Deaeration



This 25 - um - thick Polyester Release Film is specifically designed for use in the manufacturing process of Glass - Reinforced Plastic (GRP) pipelines. Its unique properties make it an essential component in ensuring the high - quality production of these pipelines. With excellent strength, it can withstand the pressures and forces exerted during the manufacturing steps. The film's strong yet flexible nature allows it to conform precisely to the shape of the pipeline molds. Its remarkable clarity ensures that there are no visual impairments or distortions that could potentially affect the quality inspection of the GRP pipelines. Moreover, being free of joint knots, it provides a smooth and continuous surface, which is crucial for the uniform curing and integrity of the GRP material, resulting in durable and reliable GRP pipeline.



Product Features

Excellent resistance to high and low temperatures

Good chemical resistance

Excellent mechanical and electrical performance

Excellent flatness, low friction coefficient



Product Application

This product is widely used for mold demolding and surface smoothing in the production process of fiberglass pipelines, storage tanks, etc. The film surface can also be coated with silicone oil treatment to make demolding more efficient.





High Performance 36μm PET Polyester Film for FRP Continuous Winding Pipe Deaeration 0

Technical Data



Item Standard
Thickness (um)

19/25/30/36/40/50/75 ± 10%



Tensile strength (Mpa )      (warp and weft)

≥ 150



Break elongation (%)

≥ 60



Shrinkage (%) (warp and weft) ≤3
Stability under high temparature

≥180
